Add External Links - Time based Table/Portrait Charts – Flow Support

As Flow becomes the central information hub for all data and keeping true to the philosophy of having "a single source of truth", external links can be configured on measures in a Time-Based Table/Portrait Chart.

Imagine having access the online documentation, videos or links to open raw data sources information from one single place.

Links have the capability for users to specify a URL that will navigate to these endpoints. A number of placeholders are available to dynamically configure the URL to add a more integrated experience.

Links are configured on the table's Sections section.

*Note - This feature was introduced in version 7.1

Time-Based Table/Portrait - Sections Screenshot 2024-07-08 at 10.35.16.png

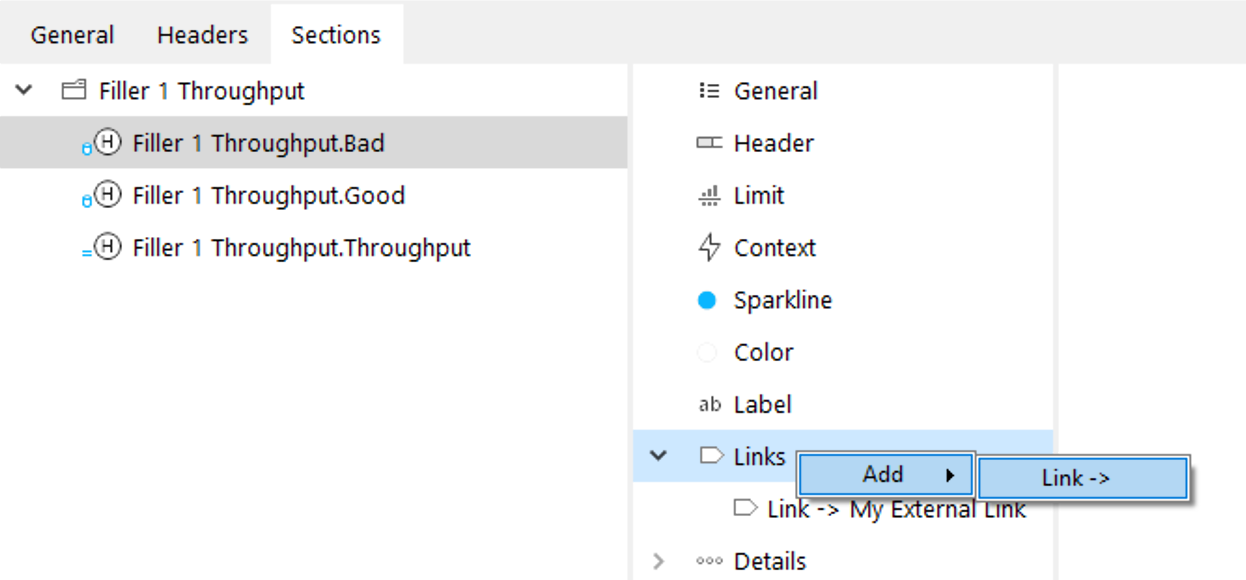

Links can be added my preforming a "right-click" action on the Links property:

Screenshot 2024-07-08 at 10.36.43.png

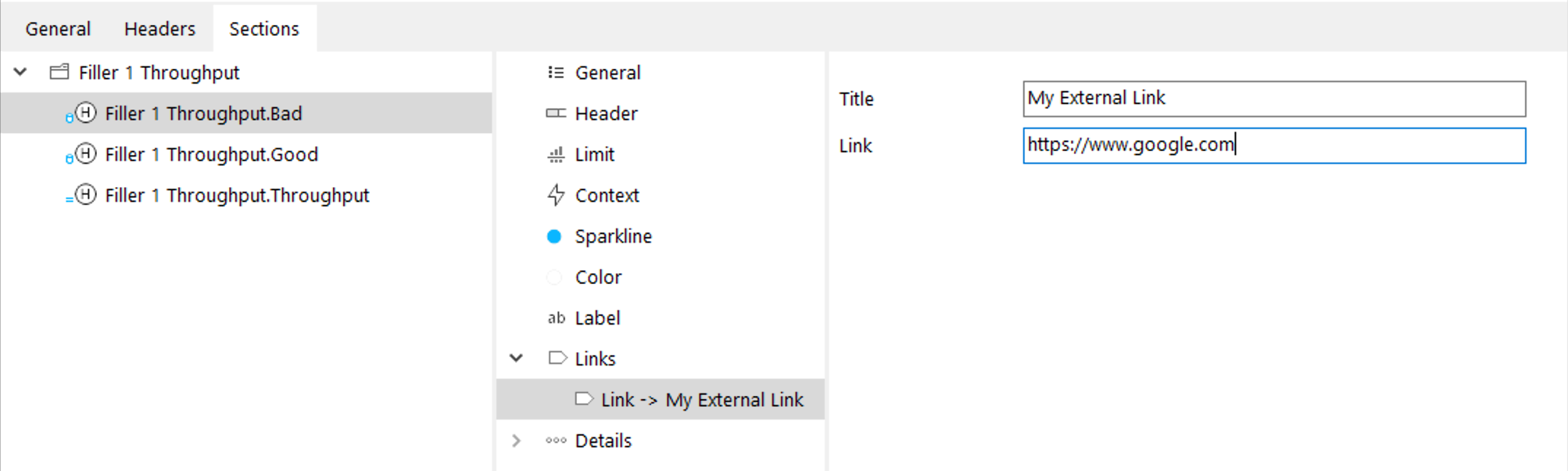

Users have the capability to add links to multiple external resources

The URL provided have the capability to dynamically replace a certain list of placeholders to the external source. Imagine you want to drill down to the exact time range as the measure value you are interrogating. Placeholders will allow you to achieve this.

URL example:

[ServerPath]charts/6?periodStart=[PeriodStart]&periodEnd=[PeriodEnd] - This will replace the current Flow server address and navigate to chart with id 6 and will replace the hourly period's start and end time based on the value selected on the table report.

Screenshot 2024-07-15 at 12.07.22.png

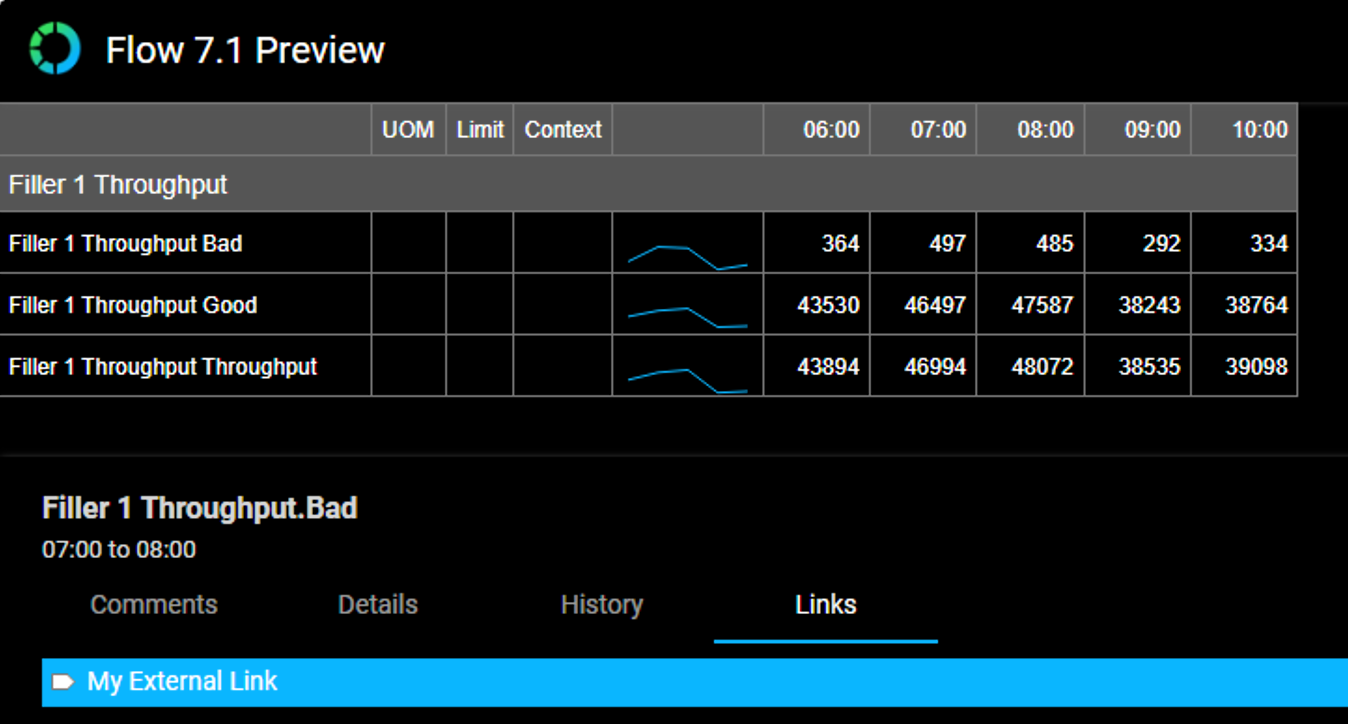

Links will be available from the Flow Web Server by accessing the bottom sheet drill through capability when selecting a measure value on the Table-Based Chart:

Screenshot 2024-07-08 at 11.19.02.png

A complete list of placeholders available is tabled below:

Placeholders List:

Model Attributes	Placeholder syntax is [ModelAttribute("Area")]. The name of the model attribute is specified and will be replaced by the value of the model attribute.
Name	Placeholder syntax is [Name]. Will be replaced by the name of the measure.
Description	Placeholder syntax is [Description]. Will be replaced by the description of the measure.
Hierarchical Name	Placeholder syntax is [HierarchicalName]. Will be replaced by the hierarchical name of the measure. The hierarchical name is a combination of the model path up to metric level.
Value	Placeholder syntax is [Value]. Will be replaced by the current value of the measure.
Parent	Placeholder syntax is [Parent]. Will be replaced by the name of the parent container in the model hierarchy.
Metric	Placeholder syntax is [Metric]. Will be replaced by the name of the metric that contains the measure.
UOM	Placeholder syntax is [UOM]. Will be replaced by the measure's unit of measure.
Interval Type	Placeholder syntax is [IntervalType]. Will be replaced by the measure's interval type i.e. "Hourly", "Daily" etc.
Retrieval Type	Placeholder syntax is [RetrievalType]. Will be replaced by the measure's retrieval type i.e. "Retrieved", "Manual" etc.
Period Start	Placeholder syntax is [PeriodStart]. Will be replaced by the start time of the time period selected on the time-based chart. The date-time format can be specified by adding the string format option in brackets after the datetime placeholder i.e. [PeriodStart("yyyy-DD-mm")]
Period Start UTC	Placeholder syntax is [PeriodStartUTC]. Will be replaced by the start time of the time period selected on the time-based chart in UTC. The date-time format can be specified by adding the string format option in brackets after the datetime placeholder i.e. [PeriodStartUTC("yyyy-DD-mm")]
Period Start UNIX	Placeholder syntax is [PeriodStartUNIX]. Will be replaced by the start time of the time period selected on the time-based chart in UNIX time.
Period Start UNIX UTC	Placeholder syntax is [PeriodStartUNIXUTC]. Will be replaced by the start time of the time period selected on the time-based chart in UNIX UTC time.
Period Start UNIX ms	Placeholder syntax is [PeriodStartUNIX_ms]. Will be replaced by the start time of the time period selected on the time-based chart in UNIX time, including milliseconds.
Period Start UNIX ms UTC	Placeholder syntax is [PeriodStartUNIXUTC_ms]. Will be replaced by the start time of the time period selected on the time-based chart in UNIX UTC time, including milliseconds.
Period End	Placeholder syntax is [PeriodEnd]. Will be replaced by the end time of the time period selected on the time-based chart. The date-time format can be specified by adding the string format option in brackets after the datetime placeholder i.e. [PeriodEnd("yyyy-DD-mm")]
Period End UTC	Placeholder syntax is [PeriodEndUTC]. Will be replaced by the end time of the time period selected on the time-based chart in UTC. The date-time format can be specified by adding the string format option in brackets after the datetime placeholder i.e. [PeriodEndUTC("yyyy-DD-mm")]
Period End UNIX	Placeholder syntax is [PeriodEndUNIX]. Will be replaced by the end time of the time period selected on the time-based chart in UNIX time.
Period End UNIX UTC	Placeholder syntax is [PeriodEndUNIXUTC]. Will be replaced by the end time of the time period selected on the time-based chart in UNIX UTC time.
Period End UNIX ms	Placeholder syntax is [PeriodEndUNIX_ms]. Will be replaced by the end time of the time period selected on the time-based chart in UNIX time, including milliseconds.
Period End UNIX ms UTC	Placeholder syntax is [PeriodEndUNIXUTC_ms]. Will be replaced by the end time of the time period selected on the time-based chart in UNIX UTC time, including milliseconds.
Server Path	Placeholder syntax is [ServerPath]. Will be replaced by the current flow intance's server path. Can use to navigate to different charts within your Flow instance.
