The aim of the tutorial is to successfully create an Information model of the plant specific areas, work centers and units. Locations for specific plant and areas will also be created
Tutorial steps
- Build a Plant Model - using the Model view in the Flow Configuration tool.
Now that you have a deployed Flow System, let’s start building a Model of your production facility. Select the "Model" view tab. Flow created a new default root folder called "The Juice Factory" (the name you gave your Flow System when creating it).
Right-click on one of the folders …

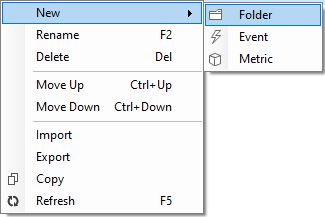

The menu allows a number of options:
- New Folder – create a new folder to group objects in your model
- New Event – create a new event definition
- New Metric – create a new metric to be measured
- Rename – rename any object in your model
- Delete– delete any object from your model
- Move Up – reorder folders to provide a procedurally accurate representation of your facility
- Move Down – reorder folders
- Import - import a portion of a model exported from another Flow instance
- Export - export the selected item (and all its children) to a file which can be imported into the same/another Flow instance
- Copy - copy the selected item (and all its children) to the clipboard
- Paste - paste from the clipboard where the copy function was invoked from the same, or a different(!), Flow instance
- Refresh – refresh the model
You can also use the Flow Zone toolbar to drag new objects onto your model

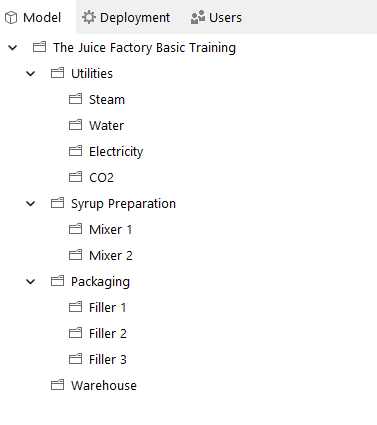

Let’s assume you have a good understanding of your Juice Factory layout. Create the following folder structure to represent the Juice Factory facility:
