Result
Understand how to use the data source preview to fault find and validate results from your deployed measure.
Tutorial steps
- Data Source Preview - Double Click on the temperature tag in your namespace to open the data source preview
- Add Multiple Pens - Add the temperature measure to the bottom of the data source preview
- Combine Pens - Add the 2 points to the same section of the graph
- Use Zoom Functionality - Use the Zoom In / Zoom Out functions to look at an 8-week preview of the data
Data Source Tool
Now that you have created and deployed your first measure, let’s go back to the Data Source tag and compare the detailed values to the measure’s summarized values for each hour.
Select the "Data" tab at the top of the Information Model and double-click the "010-TT-001.PV" Boiler Temperature item …

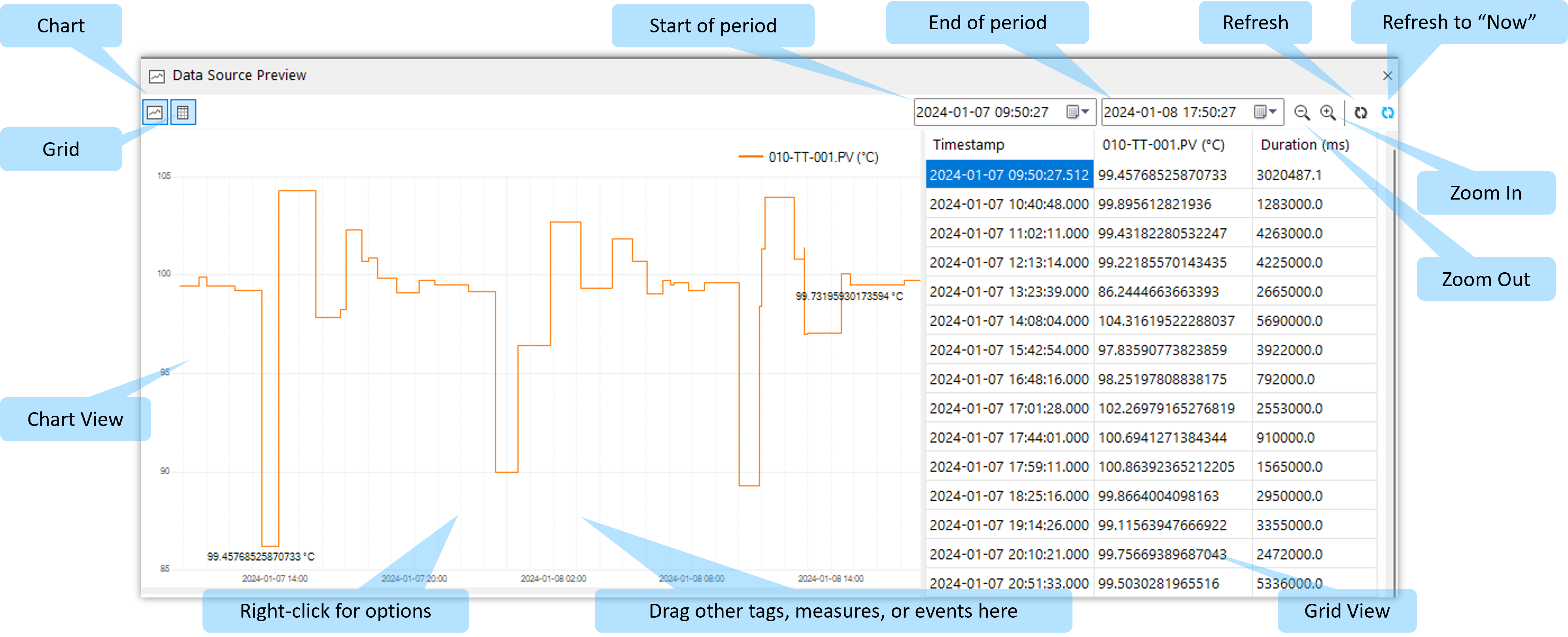

The "Data Source Preview" is a useful view of the detailed data. After opening the "010-TT-001.PV" tag, play with "Zoom In", "Zoom Out". Double-click to zoom in. Notice the right-click context menu options for each chart: "Pin to Zero", and each item: "Format", "Style", "Width", "Move" and "Remove".
The "Data Source Preview" window has two chart sections, top and bottom. By default the top section is used, however, additional tags, measures and events can be added to these two sections.
Drag the "Temperature (˚C)" measure from the Model View onto the bottom section. By default, the "Pin to Zero" setting is unlocked. Notice how the time axis is always kept in synchronization between the top and the bottom sections. This is useful for alignment and troubleshooting.

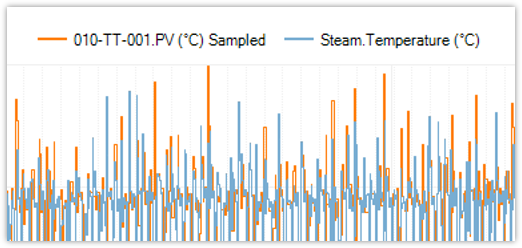

Remove the "Temperature (˚C)" item from the bottom section and add it to the top section. You should now see the overlap of the summarized measure values, changing every hour, overlaid on the detailed value. Zoom out to about 8 weeks of data. You should notice that the legend for the detailed values adds the word "Sampled".
Be aware of "Sampled" because the chart only shows a subset of the detailed data, evenly spaced over the period. This means that some important points may not be shown. As soon as you zoom in enough, and the word "Sampled" disappears, you will know you have all the data points displayed. Note that the grid view will always show all data points.
